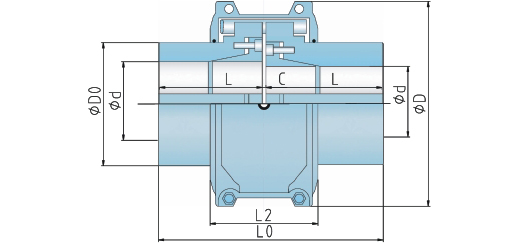

型號 |
公稱轉矩 Tn N.m |
許用轉速 (n) rpm |
******軸孔 d mm |
軸孔長度 L mm |
總長 L0 mm |
L2 mm |
D mm |
D0 mm |
間隙 C mm |
質量無孔 kg |
轉動慣量 I Kg.m2 |
充油量 kg |
|
6080T |
2150 |
3600 |
55 |
95 |
193 |
130 |
215 |
120 |
3 |
20.05 |
0.0451 |
0.172 |
|
6090T |
3810 |
3600 |
65 |
105 |
213 |
165 |
250 |
140 |
5 |
29.20 |
0.0787 |
0.254 |
|
6100T |
6305 |
2440 |
85 |
125 |
255 |
155 |
260 |
155 |
5 |
44.85 |
0.1780 |
0.426 |
|
6110T |
9410 |
2250 |
100 |
135 |
275 |
195 |
300 |
175 |
6 |
58.70 |
0.2700 |
0.508 |
|
6120T |
13870 |
2025 |
110 |
155 |
316 |
195 |
340 |
215 |
6 |
87.28 |
0.5140 |
0.735 |
|
6130T |
19980 |
1800 |
145 |
175 |
356 |
200 |
376 |
255 |
6 |
132.60 |
0.9590 |
0.908 |
|
6140T |
28900 |
1650 |
160 |
190 |
386 |
265 |
453 |
270 |
6 |
185.75 |
1.8500 |
1.135 |
|
6150T |
39950 |
1500 |
180 |
200 |
406 |
260 |
494 |
305 |
6 |
262.4 |
3.4900 |
1.952 |
|
6160T |
56300 |
1350 |
200 |
215 |
436 |
300 |
539 |
360 |
6 |
350.10 |
5.8200 |
2.815 |
|
6170T |
74820 |
1225 |
230 |
230 |
466 |
310 |
597 |
395 |
6 |
481.46 |
10.400 |
3.496 |
|
6180T |
103500 |
1100 |
260 |
270 |
546 |
310 |
663 |
440 |
6 |
710.48 |
18.300 |
3.768 |
|
6190T |
137500 |
1050 |
300 |
290 |
586 |
350 |
720 |
500 |
6 |
878.29 |
26.100 |
4.400 |
|
6200T |
187000 |
900 |
330 |
320 |
646 |
450 |
850 |
530 |
6 |
1220.29 |
43.500 |
5.630 |
|
6210T |
249800 |
820 |
360 |
350 |
713 |
500 |
920 |
570 |
13 |
1656.70 |
75.500 |
10.53 |
|
6220T |
337100 |
730 |
400 |
390 |
793 |
546 |
1000 |
571.5 |
13 |
2203.12 |
113.00 |
16.07 |
|
6230T |
435600 |
680 |
420 |
420 |
853 |
648 |
1000 |
609.6 |
13 |
2783.51 |
175.00 |
24.06 |
|
6240T |
560000 |
630 |
450 |
450 |
913 |
698 |
1020 |
647.7 |
13 |
3702.28 |
339.00 |
33.82 |
|
6250T |
747200 |
580 |
460 |
480 |
973 |
762 |
1080 |
711.2 |
13 |
4401.21 |
524.00 |
50.17 |
|
6260T |
933500 |
540 |
500 |
500 |
1013 |
760 |
1260 |
762.0 |
13 |
5313.35 |
711.00 |
67.24 |
|
6270T |
1148000 |
460 |
520 |
540 |
1100 |
800 |
1350 |
- |
20 |
5920.00 |
932.00 |
82.35 |
|
6280T |
1320000 |
339 |
550 |
550 |
1120 |
850 |
1450 |
- |
20 |
6635.29 |
1142.00 |
101.42 |
注：具體技術參數來電咨詢0577-65205101。
